Benefits of the Akreos® IOLs with Advanced Optics (AO) Technology
- Thanks to the design of their optic, they do not introduce higher-order aberrations, providing a better quality of vision 1.2
- Uniform power from the center to the periphery of the optic, for a predictable visual outcome in all patients regardless of the shape of the cornea, size and center of the pupil or the capsular bag
- They maintain the natural positive spherical aberration of the cornea, which may resultin a greater depth of field compared with aberration correcting IOLs3
The Akreos® platform has an aspheric design that adapts to a wide range of patients*
The optical performance of an IOL with AO technology should be better than that of a
standard spherical IOL

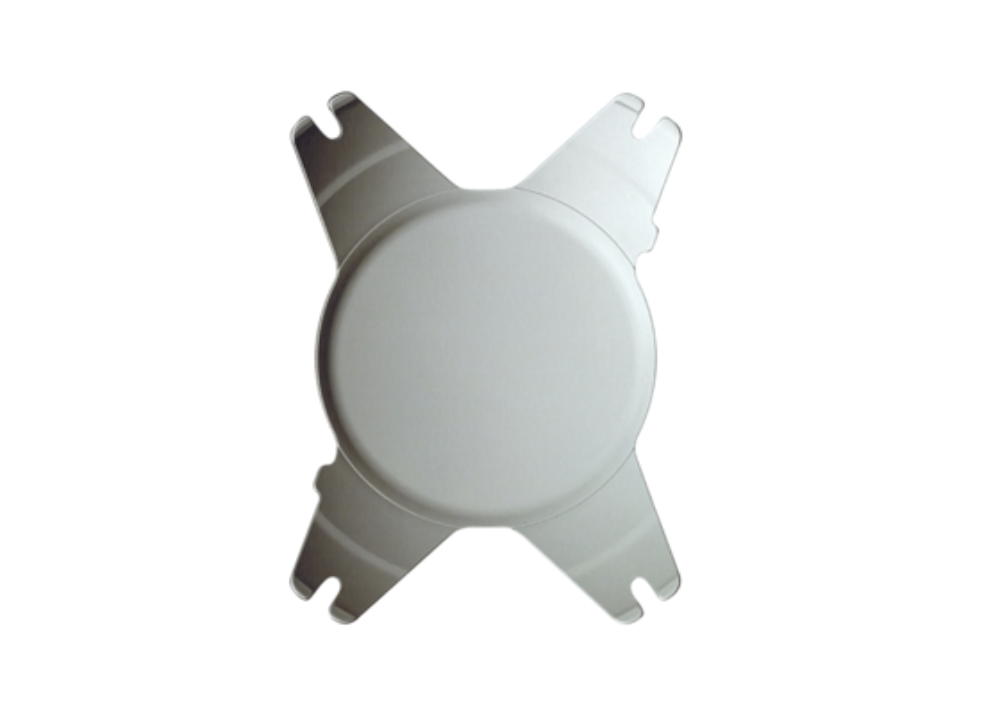

The Akreos® AO MICS and Akreos® AO lenses are crafted from an acrylic hydrophilic material that makes it optimal for today’s micro incision cataract surgery requirements. The lenses can be easily compressed to fit through a 1.8 mm incision; it unfolds smoothly once implanted into the eye and recovers its initial shape without damage.
- Minimize the surgically induced corneal astigmatism (SIA)1,2 and preserve optical properties of the cornea1,3
- Minimally traumatic surgery, providing better postoperative outcomes than standard small incision phacoemulsification
- MICS favors the use of fluidics, reducing the use of phacoemulsification power
- Reduces the risk for intraoperative anterior chamber instability
- Less incision bleeding during the surgery
- Higher structural stability of the anterior chamber
- Easy in construction and less incidence of postoperative endophthalmitis
MATERIAL
Hydrophilic acrylic
26 % water content
UV Filter
Refractive index: 1.46
DESIGN
Monofocal aberration-free aspheric optic
360° posterior square edge
Haptic angulation 10°
One-piece IOL with four-point fixation
Orientation features to indicate the anterior side (top right and bottom left)
OPTIC DIAMETER
6.2 mm: 0.00 D to +15.00 D
6.0 mm: +15.50 D to +22.00 D
5.6 mm: +22.50 D to +30.00 D
OVERALL DIAMETER
11.0 mm: 0.00 D to +15.00 D
10.7 mm: +15.50 D to +22.00 D
10.5 mm: +22.50 D to +30.00 D
DIOPTER RANGE
D to +30.00 D
D to +10.00 D (increments of 1.00 D)
+10.00 D to +30.00 D (increments of 0.50 D)
INJECTORS
Viscoject™ BIO 1.8 (10 Units/box) Ref: LP604350C | Recommended incision size:
1.8 mm (Wound assist technique)
OPTIC CONSTANT
A-Constant SRK/T: 119.1
ACD: 5.67
Surgeon factor: 1.90
Haigis: a0: 1.49 / a1: 0.40 / a2: 0.10
ULTRASONIC CONSTANT
A-Constant: 118.4
ACD: 5.20
Surgeon factor: 1.45
